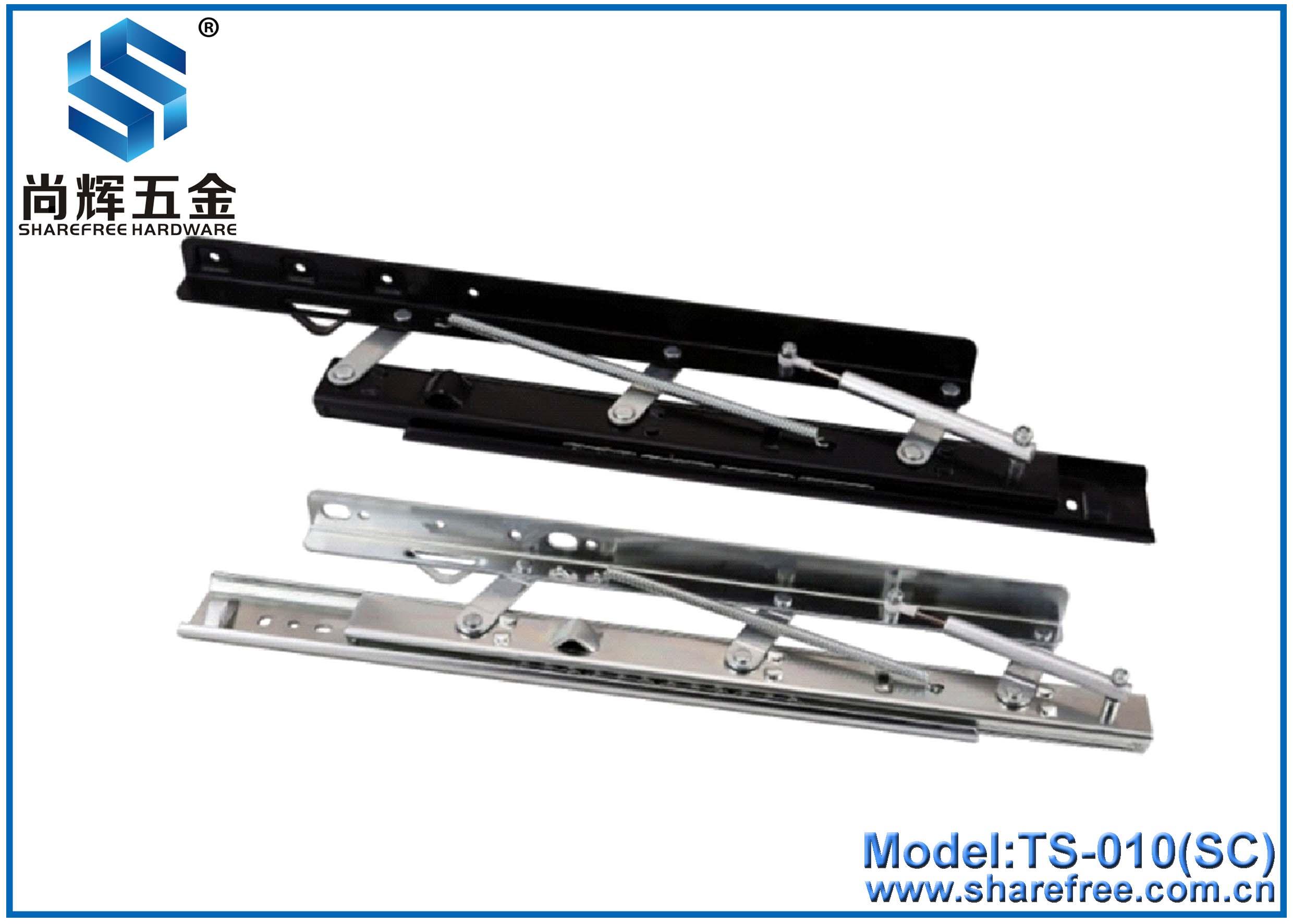

  • PRODUCT SERIES： Heavy-duty spring single side lifting table slide(soft closing)
    PRODUCT MODEL： TS-010(SC)
    Load Capacity: 50kg
    Material: 2.0mm Cold board
    Finish: Clear zinc plated, Electrophoresis
    Color: White, Black

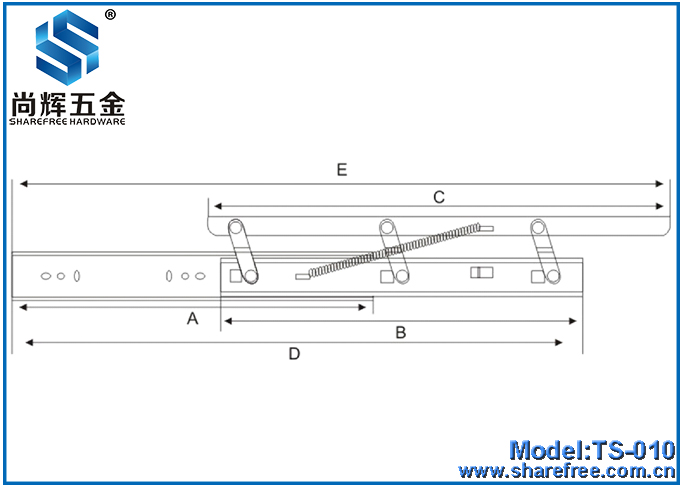

    Specification:
     主轨A(mm)
    Slide A length    		 主轨B(mm)
    Slide B length    		角码C(mm)
    Wing C    		拉长长度D(mm)
    Open D length    		拉长总长度E(mm)
    Open E length
     350350400545 635
     400400400615 680
     420260350530 665

    Heavy-duty spring single side lifting table slide(soft closing)Detail
    Load Capacity: 50kg
    Material: 2.0mm Cold board
    Finish: Clear zinc plated, Electrophoresis
    Color: White, Black
    Specification:
     主轨A(mm)
    Slide A length    		 主轨B(mm)
    Slide B length    		角码C(mm)
    Wing C    		拉长长度D(mm)
    Open D length    		拉长总长度E(mm)
    Open E length
     350350400545 635
     400400400615 680
     420260350530 665
