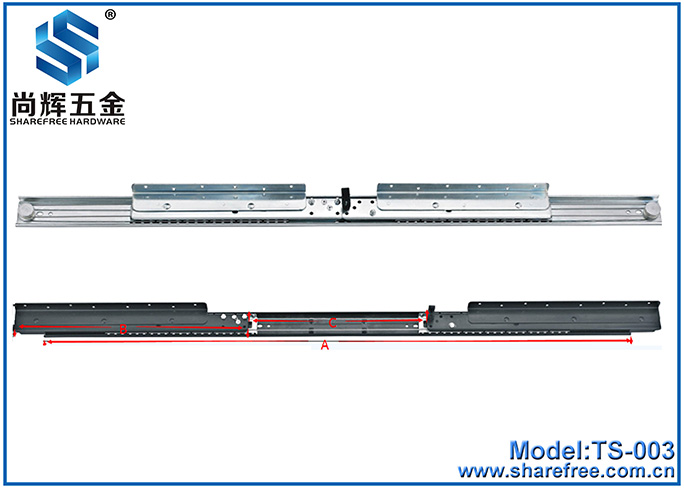

  • PRODUCT SERIES： Heavy-duty Synchronous Ball Bearing Table Slide
    PRODUCT MODEL： TS-003
    Load Capacity: 120kg
    Material: 2.0mm Cold board
    Finish: Clear zinc plated, Electrophoresis
    Color: White, Black
    Package: 4 sets/carton (without screw)
    Specification:
     滑轨总长A（mm）
    Close length    		副轨总长B（mm）
    Wing length    		中间距离C（mm）
    Middle opening length     		拉长总长D（mm）
     Open length
    800300440440
    850330490490
    900350540540
    950350590590
    1000400640640
    1100400740740
    1200450840840
    1300500940940
    140055010401040
    150060011401140

    Heavy-duty Synchronous Ball Bearing Table SlideDetail
    Load Capacity: 120kg
    Material: 2.0mm Cold board
    Finish: Clear zinc plated, Electrophoresis
    Color: White, Black
    Package: 4 sets/carton (without screw)
    Specification:
     滑轨总长A（mm）
    Close length    		副轨总长B（mm）
    Wing length    		中间距离C（mm）
    Middle opening length     		拉长总长D（mm）
     Open length
    800300440440
    850330490490
    900350540540
    950350590590
    1000400640640
    1100400740740
    1200450840840
    1300500940940
    140055010401040
    150060011401140
